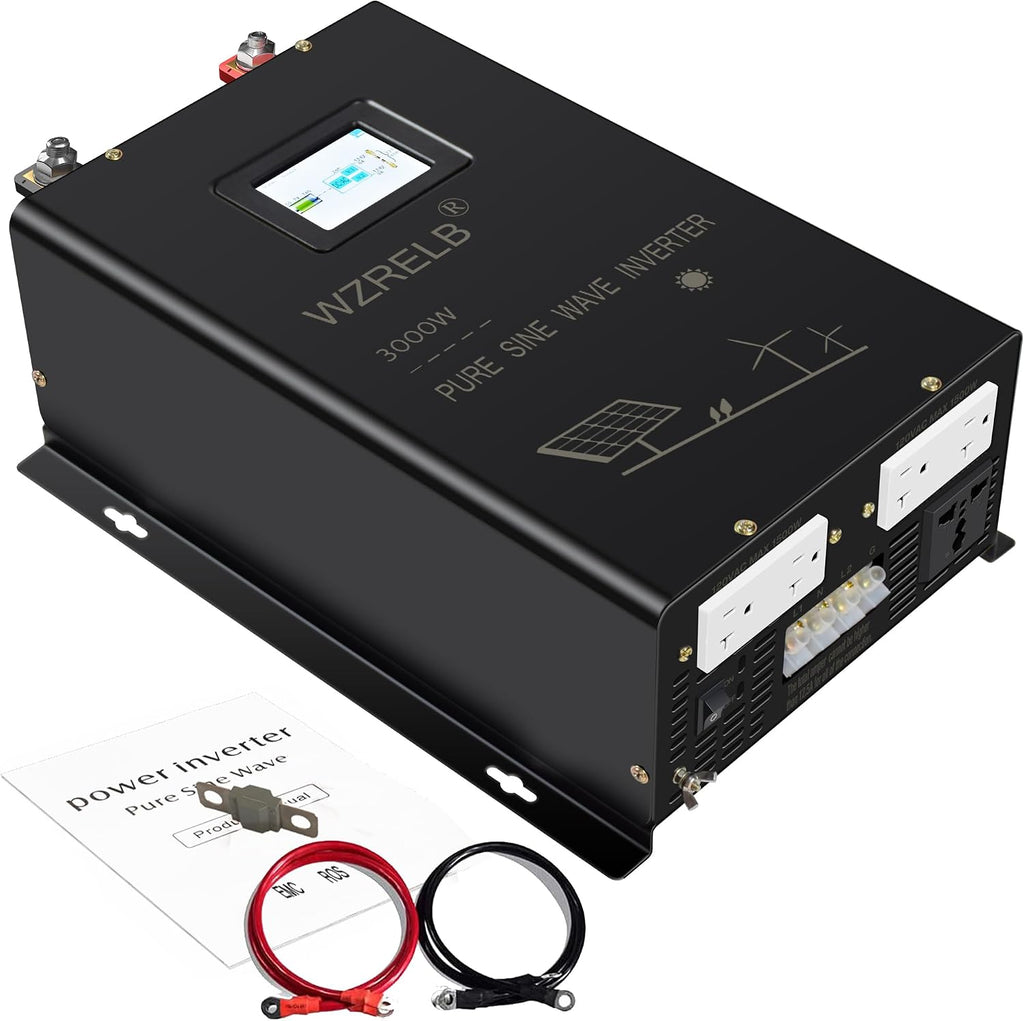

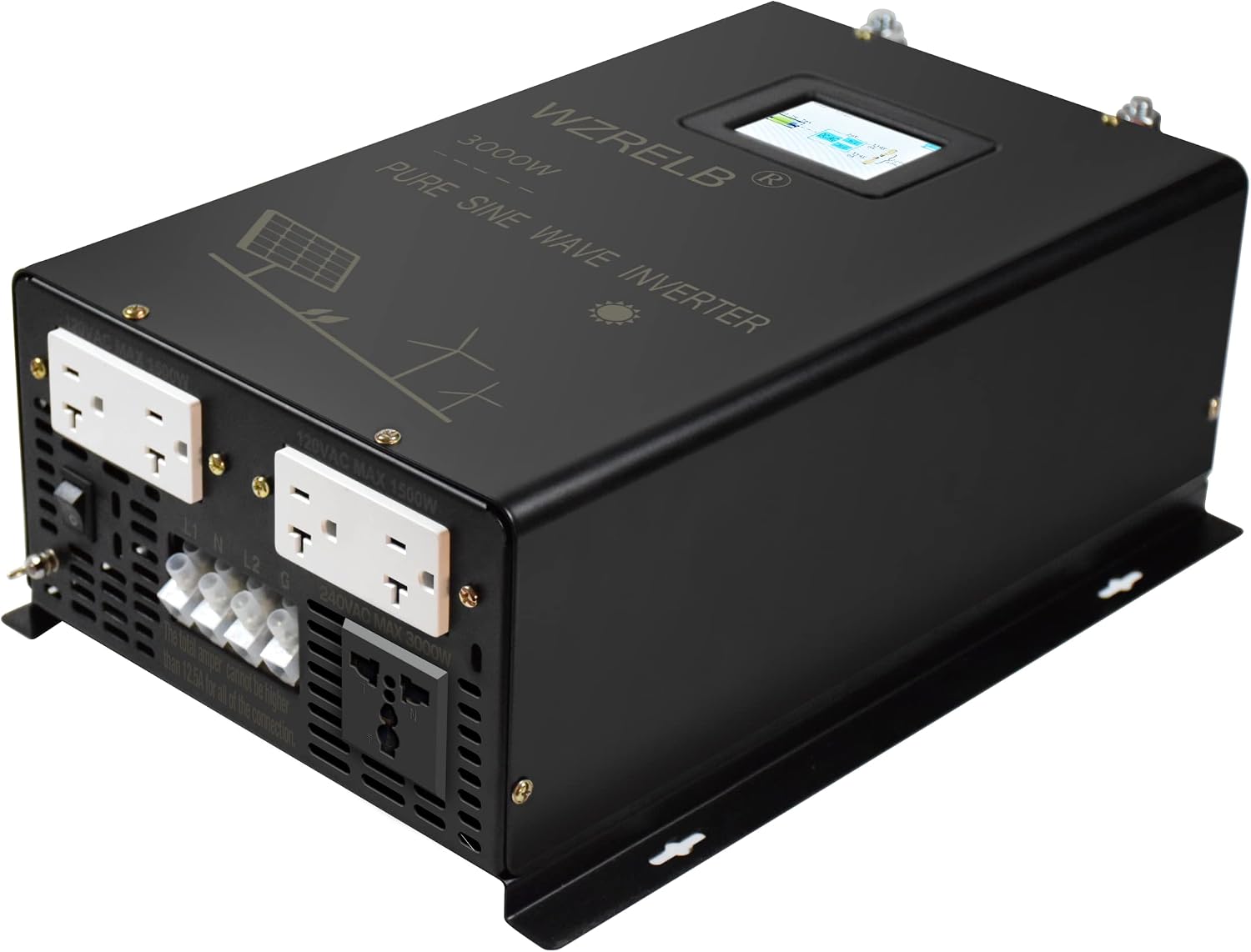

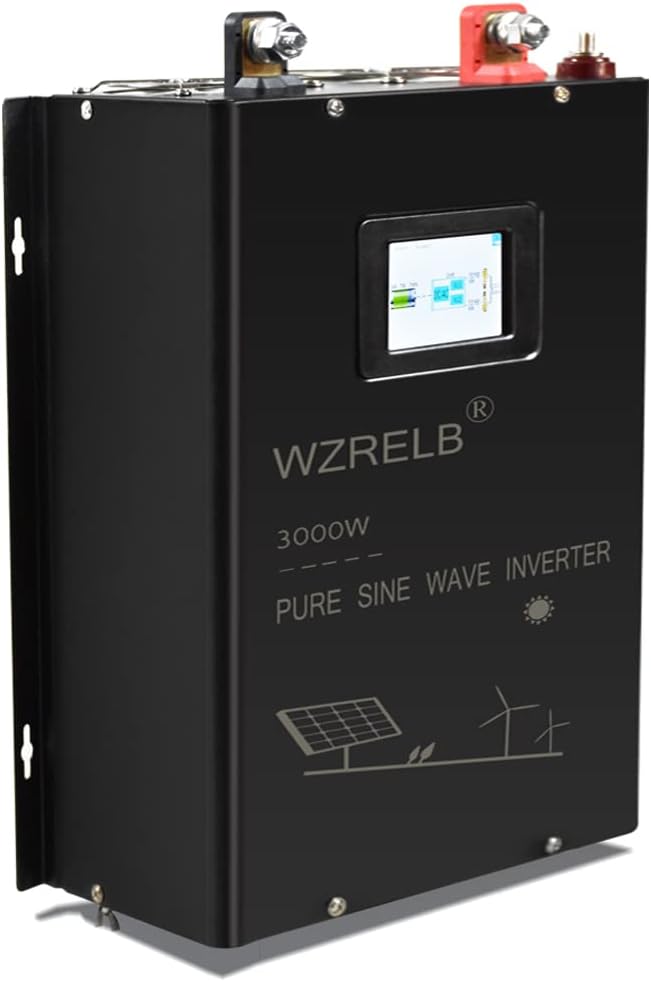

WZRELB 3000W 24V DC to 120V/240V AC Split Phase Pure Sine Wave Inverter

Inverter Specification
Rated Continuous power:3000W
Surge output power: 6000W
Standby input power: 3000W<30W
DC Input Voltage : 24V
DC input voltage range:20~30VDC
High battery shut down:19.5V±1V
Low voltage shut down: 40V

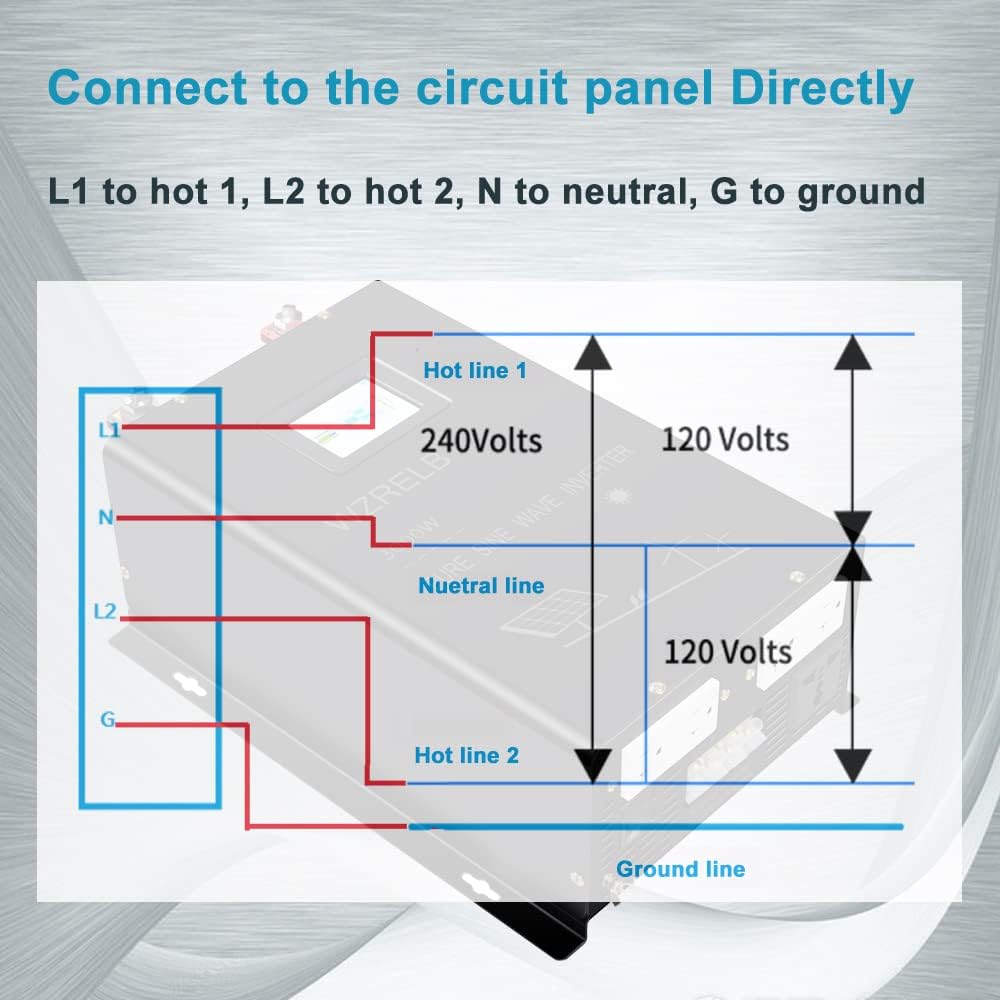

AC output voltage (nominal): 120VACand 240VAC
AC output frequency:60±2Hz
AC output waveform: Pure sine wave
Conversion efficiency: ≧91.6%
Ambient operating temperature range: 32℉-104℉/0℃-70℃
Cooling method:Intelligent temperature controlled fan or the load power reaches to the half of the inverter power
Protection: Input low voltage protection, Input high voltage protection, overload protection, temperature protection, short circuit protection, battery reverse protection.
Packings: inverter, cable, fuse, manual,warranty card.
NOTE:The fuse is for the replacement of the fuse inside of the inverter as a backup. No need of change for usage in the first time.

Additional details

• Color : Black

Features & Specs

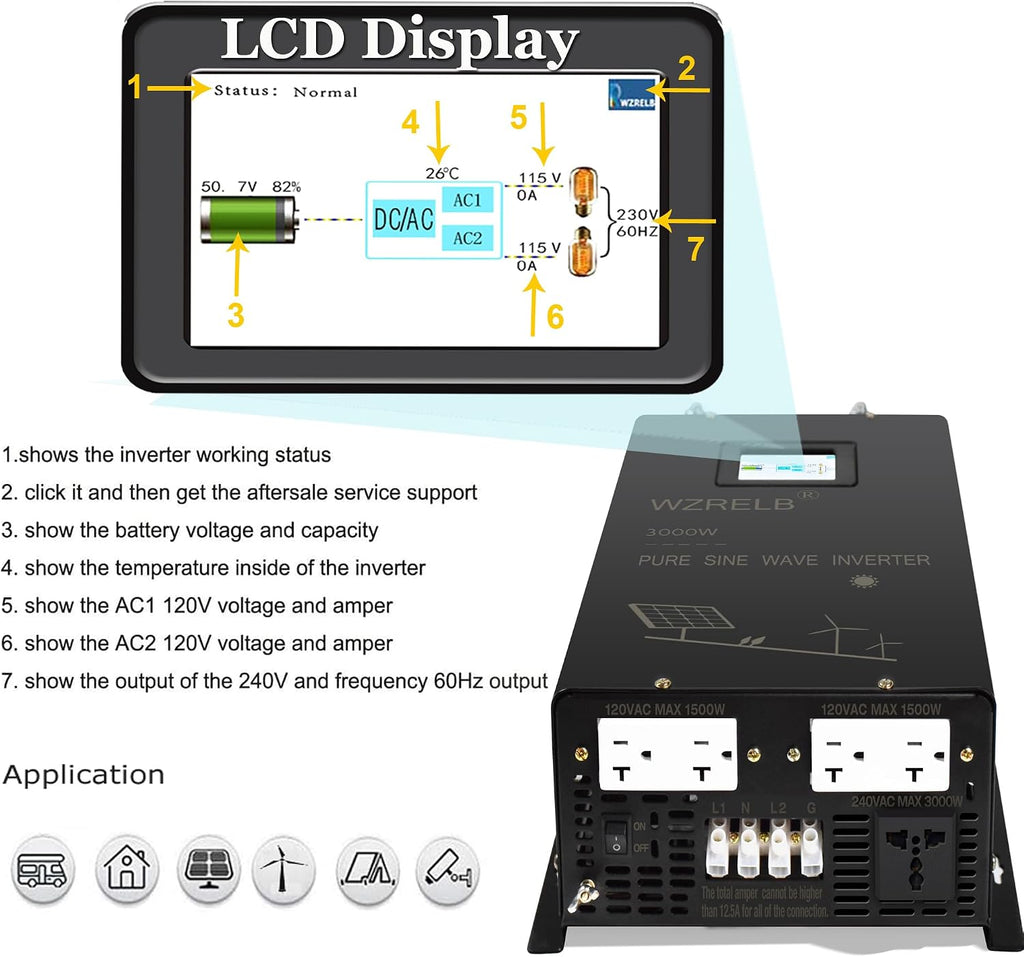

• Display Type : LCD
• Electrical Output Waveform : Pure Sine Wave
• Frequency : 60 Hz
• Input Voltage : 24 Volts
• Inverter Capacity Volt-Amp : 3000
• Number of Outlets : 4
• Output Power : 3000 Watts
• Output Voltage : 240 Volts
• Peak Output Power Watts : 6000
• Power Source : Battery Powered
• Standby Power Shutoff : 91.6
• Voltage : 24 Volts (DC)
• Wattage : 3000 watts

Item details

• ASIN : B0BPY44VN8
• Antenna Location : Vehicle
• Brand : WZRELB
• Built-In Media : Inverter Cable , 3000W 24VDC Split Phase inverter
• Item Type Name : 3000W Split Phase Pure Sine Wave Inverter
• Manufacturer : Yueqing Reliable Electric co.,ltd
• Mfr Part Number : SPVC300024
• Model Name : SPVC300024
• Model Number : SPVC300024
• UPC : 739608190799
• Warranty Description : a year warranty

Measurements

• Item Dimensions L x W x H : 16.2'L x 9.7'W x 3.7'H
• Item Weight : 11.5 Pounds

User guide

• Energy Specifications Met : Yes
